The Sentry LP & HP, the next step up in wrapping

Ready to step up from manual wrapping? The feature-rich Sentry LP & Sentry HP are on a level of their own when it comes to entry-level semi-automatic stretch wrappers.

Sentry stretch wrappers utilize Orion's signature rugged steel construction and durable AC motors, and integrate standard features like a load stabilizing 200% powered pre-stretch film carriage — reducing film consumption to about half of manually wrapped loads and helping provide a rapid ROI.

Plus, the Sentry LP and HP are equipped with user-friendly features like the IntelleVue touchscreen display to quickly change wrap counts, adjust turntable speed, carriage speed and film tension. Also, standard are the load height sensing photo eye and Orion's unique RevoLogic™ technology, which delivers a precise count of each revolution of the turntable, and stops the turntable in the same position after each cycle.

FEATURES AND BENEFITS

• User-friendly IntelleVue display panel and controls package, includes pre-programmed recipes and a standard multi-language controller interface

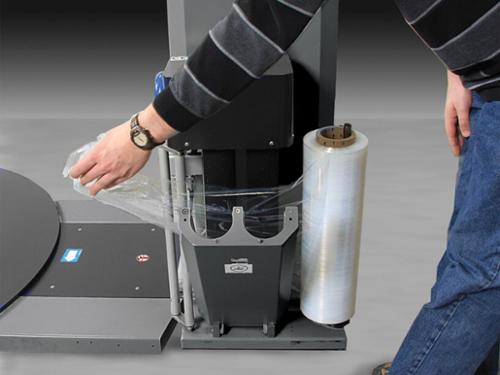

• 200% powered pre-stretch film carriage with adjustable film tension and safety E-stop obstacle detection
• Adjustable speed turntable
• RevoLogic™ technology precisely applies the exact top and bottom wrap counts and ensures home position alignment stops turntable in same position after each cycle
• Rugged steel construction, forklift portable
• Automatic load height sensing photo eye
• Adjustable/separate top & bottom wrap counter
• Heavy-duty industrial chain drives the carriage and the turntable



OPTIONS

• 110" Extended Mast
• Easy-to-use integrated scale package with quick connect and battery backup
• 20" Insta-Thread Film Carriage with 260% pre-stretch
• Sentry LP - Pallet Jack Ramp
• Sentry LP - Electrical Walkie Ramp



TYPICAL PRODUCT SPECIFICATIONS

• Rotation Speed Variable up to 12 RPM with soft-start
• Max. Height 80"
• Max. Load Size Sentry LP - 55" x 55" x 80" H – Sentry HP - 55" x 55" x 80" H
• Max. Load Weight 4,000 lbs.
• Film Pre-stretch 200%
• Film Tension Control Adjustable
• Display Panel 7" IntelleVue color touch panel
• Electrical 120 VAC, 60 cycle, 1-phase, 20 amps (Not suitable for GFIC)
• Machine Weight (Approximate) Sentry LP - 1,218 lbs.; w. scale 1,239 lbs. – Sentry HP - 1,229 lbs.; w. scale 1,250 lbs.
• Warranty 3 years
