Premium features in a cost effective, rugged & reliable design.

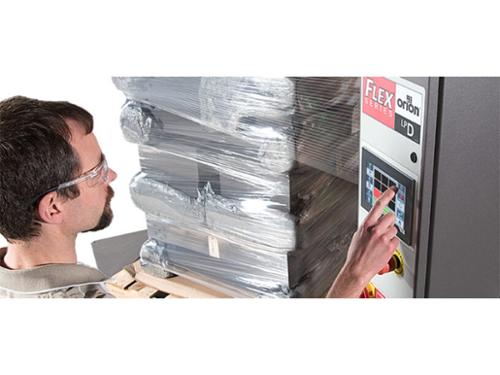

The Flex LPD & HPD are rugged and reliable semi-automatic stretch wrapping machines with all the features you need to quickly, efficiently, and economically wrap pallet loads.

Built for the most demanding industrial environments, the Flex LPD & HPD feature the industry leading S-Carriage film delivery system, a durable steel framework that incorporates a heavy-duty 6,000 lb. ring bearing turntable support, AC motors, and Orion's unique RevoLogic technology with photo-eye sensors that improves the precision application of programmed wraps for maximizing load containment and film yield.

THE S-CARRIAGE:

One of biggest advances in film carriage technology, the S-Carriage which in addition to a consistent film-saving 260% prestretch, further maximizes film yield another 5 to 15% by reducing film neckdown (width reduction). Film-force-to-load corners compensation ensures consistent load stabilizing film tension that won't crush corners.

GENERAL FEATURES:

• 7” IntelleVue color, HD touch screen HMI
• Premium efficiency AC motors with 15 RPM variable speed “soft start”
• Revo-Logic technology for precise film application with maximum load containment and film yield
• 6,000 lb. maximum load capacity - Orion's universal base removes casters (wear items) for a robust ring bearing and allows the HPD & LPD to be field retrofit to automatic performance (HPA & HPD).
• Film saving 260% powered film pre-stretch
• Automatic force to load for even film tension
• Max load height 80”- standard, 110” - optional



HPD SPECIFIC FEATURES:

• 48” x 48” turntable for loads up to 55” x 55”
• Octagonal turntable for easy forklift loading



LPD SPECIFIC FEATURES:

• 63” diameter turntable for loads up to 55” x 55”
• Load with a pallet jack, electric walkie, or forklift
• Full surround deck for turntable protection
